Techniques for Processing Low-Grade Copper Ores

Processing low-grade copper ores requires a variety of techniques tailored to the specific type of ore and its characteristics. Here are some of the key methods used:

For Sulfide Ores:

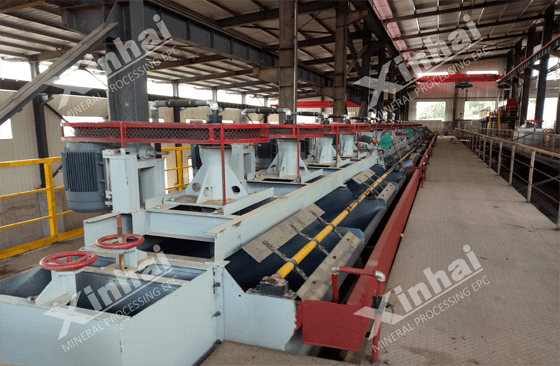

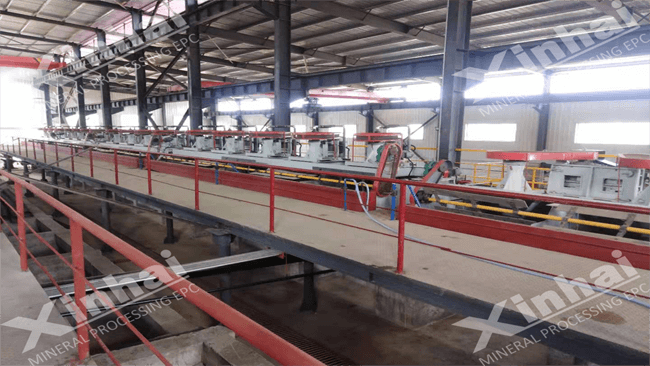

Flotation:

Crushing and Grinding: The ore is first crushed and ground into a fine powder to increase the surface area.

Reagent Addition: Chemical reagents such as collectors (e.g., xanthates), frothers (e.g., pine oil), and depressants (to separate unwanted minerals) are added.

Bubble Formation: The mixture is agitated to create bubbles, which attach to copper minerals, making them float to the surface.

Skimming: The copper-rich froth is skimmed off and collected.

Hydrometallurgy:

Leaching: Copper is dissolved from the ore using acidic solutions (like sulfuric acid) or other chemicals.

Solvent Extraction and Electrowinning (SX/EW): This involves using organic solvents to extract copper from the leach solution, followed by electrowinning to deposit pure copper.

For Oxide Ores:

Leaching:

Acid Leaching: Similar to sulfide leaching but often uses different chemicals and conditions.

Alkali Leaching: Used for certain oxide ores where acid is not suitable.

Heap Leaching:

Large piles of crushed ore are treated with a leaching solution that percolates through the heap, dissolving copper.

For Mixed Ores:

A combination of techniques is often required due to the presence of both sulfide and oxide minerals:

Selective Flotation: Different reagents are used to selectively float either sulfides or oxides.

Bioleaching: Microorganisms are used to break down and dissolve copper minerals, particularly effective for low-grade and complex ores.

Challenges in Processing Low-Grade Copper Ores:

Low Recovery Rates: It’s harder to extract copper efficiently from lower-grade materials.

High Costs: More energy and chemicals are needed, increasing operational expenses.

Environmental Concerns: Increased use of reagents and energy can lead to greater environmental impacts, requiring strict management and mitigation strategies.

Complexity: Mixed ores demand sophisticated processing sequences and control systems.

Future Trends:

Advanced Flotation Agents: Development of more effective and environmentally friendly flotation collectors and modifiers.

Innovative Leaching Techniques: Exploring new leaching agents and optimizing existing processes for better performance and lower costs.

Biotechnology Integration: Further advancements in bioleaching to enhance copper recovery from difficult-to-treat ores.

Automation and AI: Implementing intelligent systems to optimize plant operations, reduce downtime, and improve overall efficiency.

Sustainable Practices: Emphasizing recycling of copper from waste materials and improving the sustainability of mining operations through better resource management and reduced environmental footprints.

In conclusion, while processing low-grade copper ores presents significant challenges, ongoing technological innovations and a focus on sustainability are paving the way for more efficient and eco-friendly extraction methods. As the demand for copper continues to rise, especially in green technologies, mastering these techniques will be crucial for the future of the industry.
