Processing Quartz Ore for High-Purity Applications: Techniques, Challenges, and Industry Impact

High-purity quartz (HPQ) isn’t just another mineral—it’s the backbone of industries driving modern technology, from semiconductors to solar panels. Defined as quartz (SiO₂) with purity levels of 99.9% (3N) to 99.999% (5N) or higher, HPQ is a niche material that demands precision at every processing step. As a mining professional with years in the field, I’ve seen firsthand how the journey from raw quartz ore to ultra-pure SiO₂ shapes everything from cost to environmental impact. Here’s how it’s done, why it matters, and what lies ahead.

Why High-Purity Quartz Matters

HPQ is the unsung hero of high-tech. Semiconductor manufacturers rely on it for crucibles to grow silicon wafers via the Czochralski process. Solar cell producers need it for polysilicon production. Optical engineers prize its clarity for lenses and fibers. The catch? Naturally occurring quartz rarely meets these standards straight from the ground. Impurities like aluminum (Al), iron (Fe), titanium (Ti), and alkali metals (Na, K) lurk in veins and lattices, making purification a complex, multi-stage ordeal.

Step 1: Extraction—Finding the Right Ore

Not all quartz is created equal. High-purity deposits, like those in Spruce Pine, North Carolina, or Queensland, Australia, are geological rarities—low in impurities from the start. Mining these starts with open-pit or underground methods, using explosives to expose veins or bulldozers to clear overburden. Hand tools often finish the job, ensuring minimal contamination. The goal? Extract ore with as few flaws as possible, because every impurity ups the purification ante.

Step 2: Pretreatment—Breaking It Down

Once mined, quartz ore heads to comminution—crushing with jaw crushers and grinding to a uniform size. Screening follows to sort particles, typically 1–10 mm, depending on downstream needs. Next, washing strips away surface junk like clay or iron oxides. For finer muck, ultrasonic desliming blasts it off with sound waves. This isn’t glamour work, but it’s critical: a clean starting point slashes impurity loads early.

Step 3: Physical Beneficiation—Sorting the Good from the Bad

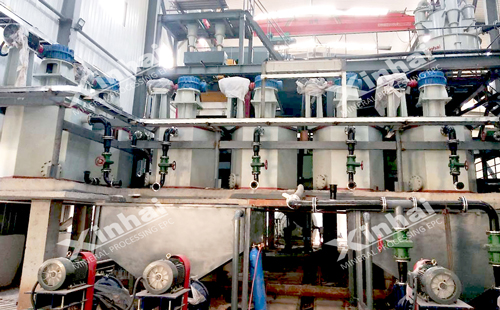

Physical methods refine the ore further. Gravity separation sinks heavy minerals like magnetite or garnet. High-Gradient Magnetic Separation (HGMS) yanks out weakly magnetic specks—think Fe or Ti traces. Flotation, using chemical reagents, floats off gangue like feldspar or mica. These steps lean on physics, not chemistry, keeping costs and waste down while prepping quartz for the heavy lifting ahead.

Step 4: Chemical Purification—Going Deep

Now the real challenge kicks in: chemical purification. Acid leaching with hydrofluoric (HF), hydrochloric (HCl), or sulfuric (H₂SO₄) acids dissolves metallic impurities like Fe and Al. Hot-pressure leaching amps this up, targeting stubborn holdouts. Calcination heats quartz to 800–1200°C, cracking inclusions, followed by water quenching to fracture grains and expose more flaws. Chlorination roasting, using chlorine gas at high heat, volatilizes impurities into oblivion. Each method digs deeper, pushing purity toward that 5N mark.

Step 5: Advanced Techniques—Pushing the Limits

For ultra-high purity, advanced tricks come into play. Thermal phase transitions target lattice-bound elements like Al or Ti. Microbial leaching—think bacteria eating impurities—offers a green twist, though it’s slow for industrial scales. Some skip natural ore entirely, growing synthetic quartz via hydrothermal synthesis. These methods aren’t cheap, but for applications like optics demanding 99.998% SiO₂ (4N8), they’re worth it.

Quality Control—Proving the Purity

No shortcuts here. Inductively Coupled Plasma Mass Spectrometry (ICP-MS) and X-Ray Fluorescence (XRF) pinpoint impurities down to parts per billion. Scanning Electron Microscopy (SEM) maps grain-level flaws. Semiconductors tolerate less than 50 ppm total impurities; optics need low Al for transmittance. Every batch gets a purity grade—3N, 4N, 5N—tied to its end use.

The Challenges: Tech, Cost, and Planet

Processing HPQ isn’t a walk in the park. Lattice impurities like Al or Ti resist removal, mocking even the best leaching setups. Calcination and roasting gulp energy, while HF leaching spits out hazardous waste. Costs skyrocket as purity climbs—5N quartz can fetch $20,000 per ton, reflecting the effort. Balancing this with environmental regs and profit margins keeps mining engineers up at night.

Where HPQ Shines

The payoff? HPQ powers tech we can’t live without. Fused quartz crucibles mold silicon for chips. Photovoltaic lines churn out solar-grade polysilicon. Optical quartz becomes lenses, fibers, and UV lamps. Each application leans on HPQ’s purity to perform, making that grueling process non-negotiable.

The Future: Smarter, Greener, Broader

What’s next? Sustainable methods like microbial leaching could cut waste, though scaling lags. Tailings purification or synthetic quartz might ease reliance on deposits like Spruce Pine. Diversifying the supply chain—beyond a handful of key sites—looms large as demand spikes. The industry’s at a crossroads: innovate or stagnate.

Wrapping Up

Processing quartz ore for high-purity applications is a grind—literally and figuratively. From blasting veins to roasting out impurities, it’s a multi-stage battle against nature’s flaws. For mining pros, it’s a familiar dance: technical precision meets real-world grit. HPQ’s role in tech isn’t fading—semiconductors, solar, optics all lean on it harder every year. The trick is keeping up, sustainably, as the stakes rise.
