Techniques for Washing Chrome Ore

Chrome ore is super important in a bunch of industries. It's especially crucial in stainless steel manufacturing because it gives the steel that amazing corrosion resistance and durability we all love. The process of washing chrome ore, which is also called beneficiation, is all about separating the valuable chromite from the waste materials. This not only makes the final product better but also helps us make the most of our limited ore reserves. And with the world's demand for chrome - based products skyrocketing, it's more important than ever to really understand these washing techniques.

Types of Chrome Wash and Beneficiation Techniques

Gravity Separation

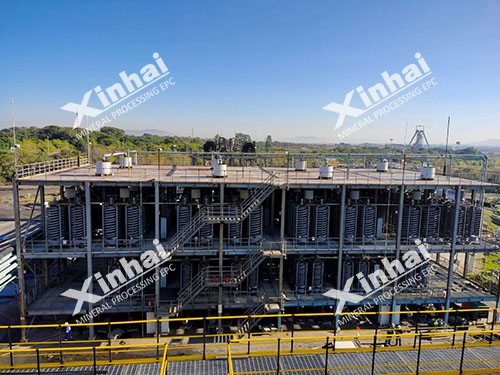

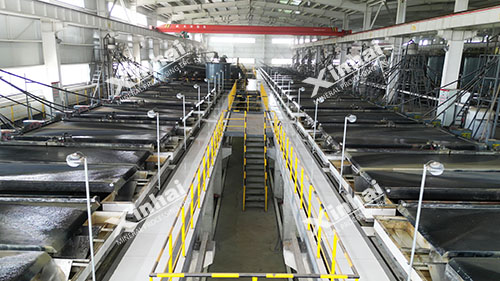

Gravity separation is one of the oldest and most commonly used methods in chrome ore beneficiation. The idea behind it is pretty simple: it takes advantage of the differences in density between chromite minerals and the gangue (the unwanted stuff). We use equipment like spiral concentrators, shaking tables, and jigs for this. For example, spiral concentrators use gravity and the centrifugal force from their spiral shape to separate particles. They're easy to operate and don't cost much to run. But here's the catch - they're not so great for fine - grained particles. When the particles are really small, the differences in how fast they settle become too tiny to matter. In India, where there are huge chrome ore deposits, gravity separation is a main method. But, as people have reported, dealing with fine particles and silicate gangue is a real headache and can cause a lot of chromite to be lost.

Dense Medium Separation (DMS)

Dense medium separation (DMS) uses a heavy liquid, usually a mixture of ferrosilicon or magnetite suspended in water, to sort minerals by density. Miners put the chrome ore into this separation medium. The heavier chromite particles sink, while the lighter waste materials float to the surface. This method is really efficient and is great at producing high - grade concentrates. But it needs really precise density control. We do this with a system of pumps and cyclones that keep the medium consistent. Setting up DMS plants costs a lot at first because of the specialized equipment and the cost of the medium itself. But over time, especially when processing large amounts of ore where there's a big density difference between chromite and the gangue, these plants can be really cost - effective.

Flotation

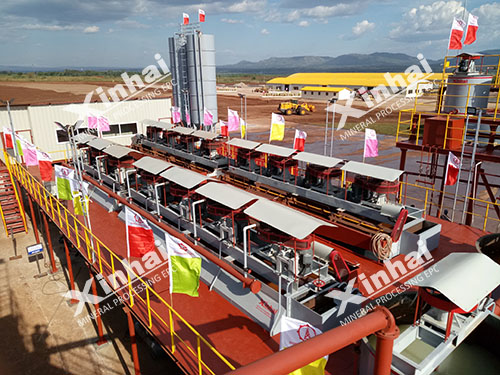

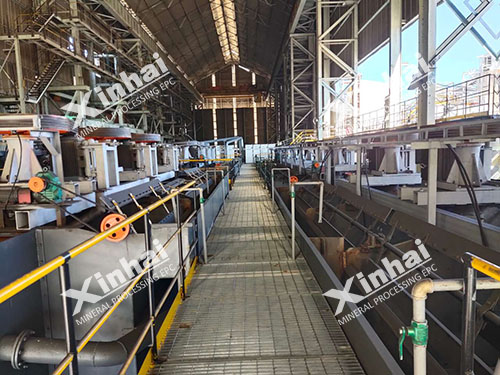

Flotation is a technique that uses the differences in how hydrophobic (water - hating) minerals are on their surface. It's often used in chrome ore beneficiation to get rid of silicate and iron impurities. In this process, we add reagents to the ore slurry. These reagents make the chromite particles hydrophobic while keeping the gangue materials hydrophilic (water - loving). Then we add air bubbles. The hydrophobic chromite particles stick to the bubbles and rise to the surface, where we can skim them off. Compared to gravity separation, flotation is more complicated and expensive. It needs really careful control of how much reagent we use and the operating conditions. But it's really good for processing ores where the valuable minerals are spread out finely and can't be easily separated by other methods.

Magnetic Separation

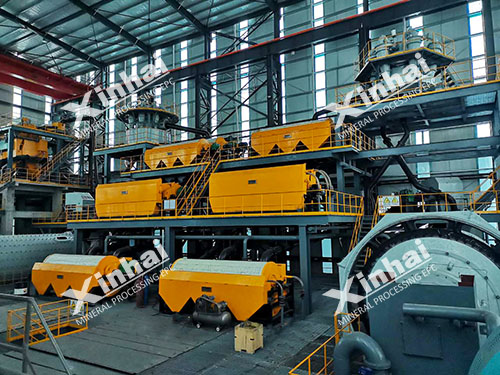

Magnetic separation is all about telling magnetic minerals apart from non - magnetic ones. In chrome ore processing, magnetite is often mixed in, and we use magnetic separators to get it out. This technique is really useful for low - grade ores, where increasing the concentration of magnetic elements is important. It's often used along with other methods. For example, after gravity separation, magnetic separation can be used to make the concentrate even better. By getting rid of any remaining magnetic impurities, this process makes the final product purer.

Geographical Distribution of Chrome Ore Processing

Dominance of South Africa in Chrome Mining and Beneficiation

South Africa is a huge deal in global chrome ore production. They have massive reserves in the Bushveld Igneous Complex, which means they have a big influence on the world chrome market. In their chrome wash and beneficiation plants, they use all sorts of methods like gravity separation, dense medium separation (DMS), and flotation, depending on the unique features of each ore. These plants operate on a huge scale and they're really focused on being energy - efficient and environmentally responsible. Some South African plants are even using renewable energy like solar power to reduce their carbon footprint. That's a really smart and forward - thinking move!

Role of Other Regions (India, Kazakhstan)

India is also a major player in chrome ore processing. They have a lot of chromite reserves, but the quality varies a lot from one deposit to another. Indian beneficiation plants mostly rely on gravity separation, but they're always trying to make this technique better. As we mentioned before, handling fine particles and dealing with chromite losses are ongoing problems that they're working hard to solve. Meanwhile, Kazakhstan has significant deposits that contribute to the global chrome supply. Their processing methods are adjusted to fit the local ore characteristics and economic conditions, and they usually use a mix of beneficiation approaches similar to what other big producers do.

Environmental Impact and Mitigation Strategies

Water Usage in Chrome Wash Plants

Chrome wash plants that use gravity separation and flotation need a ton of water. Gravity separation uses water to create a flowing medium that sorts particles by density, and flotation needs water as the place where the reagents and ore particles interact. To deal with this high water demand, a lot of plants are now using water - recycling systems. These systems clean and reuse the water, which cuts down on how much water they need overall. This is great because it saves our precious water resources and also saves money on getting fresh water.

Energy Consumption

Energy use is a big issue for chrome beneficiation plants. Techniques like dense medium separation (DMS) and flotation need a lot of power. In DMS, pumping and circulating the dense medium uses up energy, and flotation needs energy for stirring, injecting air, and mixing in the chemicals. To fix this, some South African plants are turning to renewable energy. Solar power is a really good option because it's clean and sustainable. By putting solar panels in their facilities, operators can reduce their reliance on regular energy and lower their carbon emissions.

Waste Management

Chrome ore beneficiation creates tailings that can be really bad for the environment if we don't handle them properly. These waste materials have fine particles and leftover chemicals from the processing, so we need to be careful. Beneficiation plants use a bunch of waste management strategies. They build tailings dams to store the residue safely, and some facilities are even using the tailings to fill underground mine cavities in backfill operations. These strategies not only reduce environmental damage but also provide practical solutions for closing mines and restoring the land.

Plant Performance and Optimization

Challenges in Chrome Beneficiation Plants

Chrome beneficiation plants have to deal with some tough problems. One big issue is that the quality of the ore is often inconsistent. The grade and mineral composition can be different in different parts of the chrome ore deposits, which can mess up the processing efficiency. For example, if the particle size changes or there are different gangue minerals, it's hard to get consistent separation results. Equipment maintenance is also really important. Pumps, cyclones, and separators need to be serviced regularly to work at their best. If we don't take care of them, the machinery can break down, and that can stop production and cost a lot of money. And on top of all that, plants have to follow strict rules about environmental protection and worker safety, which makes running the plant even more complicated.

Solutions to Improve Plant Performance

To deal with the problem of changing ore quality, plants are using ore - blending strategies. By mixing different batches of ore, they can make the feed for the beneficiation process more consistent. They're also using advanced analytical techniques to monitor the ore quality in real - time, so they can quickly change the process parameters. Having a regular equipment maintenance schedule is a must. Plants are spending money on high - quality spare parts and training their maintenance staff to make sure the equipment doesn't break down. To make sure they follow the rules, plants are putting in comprehensive environmental and safety management systems. This includes doing regular environmental audits and training employees.

Process Optimization Case Studies

In India, the efforts to make the gravity concentration process in chrome ore plants better have been really promising. By using techniques like QEMSCAN for mineralogical characterization, plants were able to find areas where they could improve the separation circuit. Changing the cut sizes and how the gravity concentrators were set up led to more chromite being recovered. Multotec, a well - known supplier of equipment for chrome beneficiation, has also helped a lot with process optimization. Their equipment, like magnetic separation solutions, sampling solutions, and screening solutions, has made plants perform better overall.

Cost - Effectiveness Analysis

Factors Affecting the Cost - Effectiveness of Chrome Wash Plants

The cost - effectiveness of chrome wash plants depends on a few things. The technology we use is a big factor. For example, gravity separation plants usually have low operating costs, but they might not recover as much of certain ore types. Dense medium separation plants cost a lot to start with, but they can make high - grade concentrates, so the investment might be worth it. The scale of the operation also matters. Bigger plants can take advantage of economies of scale, which means the cost per unit of production goes down. Ore quality is another important factor. High - grade ores might not need as much intensive beneficiation, so the costs are lower.

Cost - Effectiveness of Different Techniques

Gravity separation plants are often a good choice for large - scale operations when the ore has a big density difference. Their simple equipment and low energy needs make them cost - effective. But for fine - grained ores, they might not be as cost - effective because the recovery rates are lower. Dense medium separation plants, even though they cost a lot at first, can be really cost - effective when processing large amounts of ore with the right density difference. The high - grade concentrates they produce can sell for a higher price in the market. Flotation plants are more expensive to run because of the reagents and the complex process. But if it's the only way to separate a certain ore, the cost can be justified. Magnetic separation plants are cost - effective for ores with a lot of magnetic components. They can be used as a pre - concentration step or to finish off the process in combination with other techniques.

Equipment and Process Flow in Chrome Beneficiation

Multotec's Equipment for Chrome Beneficiation

Multotec has a whole bunch of equipment made specifically for chrome beneficiation. Their magnetic separation systems are really good at precisely separating magnetic minerals from the ore. They have advanced sampling tools that make sure the ore is analyzed accurately at every stage of processing. Their screening technology sorts ore particles by size, which is really important for efficient separation. Slurry pumps move the ore mixtures around the plant. Cyclone systems take care of classification and separation tasks, and their gravity separation gear, like spiral concentrators, is well - known for being reliable and high - performing.

Typical Chrome Beneficiation Flow Sheet

A typical chrome beneficiation flow sheet starts with sizing screens and sampling. First, the ore is screened to get rid of any big particles. Then sampling is done to analyze the ore quality. After that, the ore goes through different stages depending on its characteristics. For example, if the ore has a big density difference, it might go through gravity separation first. If there are fine - grained particles or impurities that need to be removed by flotation, the ore will be sent to a flotation circuit. The waste and product streams are carefully managed. The waste tailings are either disposed of or treated further, and the product concentrate is either processed more or shipped to the customers.

Conclusion

There are lots of different chrome ore washing techniques, and each one has its own advantages and disadvantages. Methods like gravity separation, dense medium separation (DMS), flotation, and magnetic separation are all important in the beneficiation process, and we choose the right one based on our specific needs. Where the ore deposits are, like in South Africa, India, and Kazakhstan, also affects the strategies plants use. And more and more, environmental concerns like water use, energy needs, and waste management are really important in how these plants operate. To make plants as efficient as possible, operators have to deal with problems like inconsistent ore quality, equipment maintenance, and following regulations. Figuring out what's cost - effective also helps us choose the best beneficiation methods. With the world's demand for chrome - based products going up, it's really important to keep researching and coming up with new ideas for these techniques so we can meet the market needs in a sustainable and effective way.
