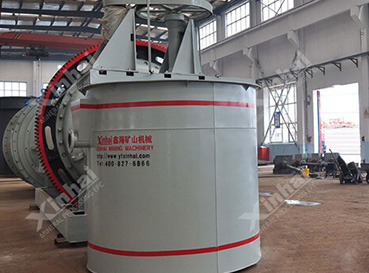

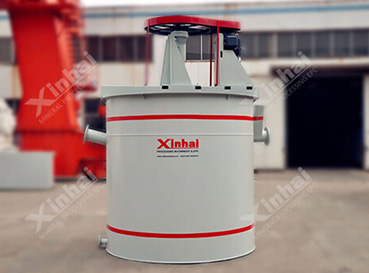

Shandong Xinhai Mining's agitation tanks mainly include high-efficiency agitation tanks、ordinary agitation tanks、reagent agitation tanks, high-temperature agitation tanks, slurry lifting agitation tanks, high-concentration slurry agitation tanks, cone-bottom agitation tanks, and pickling agitation tanks.
The impeller rotates in the tank to drive the slurry flow. Under the action of the circulation cylinder, multiple small cycles are formed in the tank, thereby achieving uniform mixing of the slurry or reagent.
The high-speed rotation of the centrifugal impeller generates negative pressure at the center of the impeller, and the external slurry is sucked into the tank through the cylinder seat at the bottom of the impeller, and the liquid level in the tank is continuously raised. After reaching a certain height, it flows out along the overflow pipe, thereby achieving the lifting capacity.
The agitation shaft adopts an upper and lower double impeller structure. Under high-speed rotation, the upper impeller presses the slurry downward, and the lower impeller lifts the slurry upward, allowing the two slurries to collide in the middle and then diffuse to the surroundings, thereby forming a large loop of the slurry with a higher concentration in the entire tank and generating an upward water flow in the tank, greatly reducing the sedimentation rate of the slurry and improving the agitation capacity to adapt to the agitation of high-concentration slurry.
| Model | Effective Volume (m3) | Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) | Motor Model | Motor Power (kW) |
Weight (kg) |
|---|---|---|---|---|---|---|
| GBJ-1000×1000 | 0.58 | 530 | 240 | Y112M-6 | 2.2 | 548 |
| GBJ-1250×1250 | 1.15 | 350 | 240 | Y100L2-41 | 3 | 820 |
| GBJ-1500×1500 | 2.2 | 320 | 420 | Y132M2-6 | 5.5 | 1350 |
| GBJ-2000×2000 | 5.46 | 240 | 560 | Y160M-6 | 7.5 | 3173 |
| GBJ-2500×2500 | 11.2 | 232 | 560 | Y180L-6 | 15 | 3939 |
| GBJ-3000×3000 | 19.1 | 220 | 700 | Y225S-8 | 18.5 | 6676 |
| GBJ-3500×3500 | 31 | 248 | 700 | Y225M-8 | 22 | 7581 |
| GBJ-4000×4000 | 45 | 153 | 1000 | Y250M-8 | 37 | 9560 |
| Model | Effective Volume (m3) | Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) | Motor Model | Motor Power (kW) |
Weight (kg) |
|---|---|---|---|---|---|---|
| BJ-500×500 | 0.0785 | 493 | 160 | Y80L-4 | 0.55 | 120 |
| BJ-750×750 | 0.25 | 530 | 240 | Y100L-6 | 1.5 | 240 |
| BJ-1000×1000 | 0.58 | 530 | 310 | Y100L-6 | 1.5 | 680 |
| BJ-1500×1500 | 2.2 | 320 | 400 | Y132S-6 | 3 | 790 |
| BJ-1600×1600 | 2.6 | 331 | 400 | Y132M2-6 | 5.5 | 990 |
| BJ-2000×2000 | 4.4 | 230 | 550 | Y132M2-6 | 5.5 | 1800 |
| BJ-2000×2500 | 5.9 | 230 | 630 | Y160M-6 | 7.5 | 2106 |
| BJ-2500×2500 | 11.2 | 230 | 630 | Y160M-6 | 7.5 | 2766 |
| BJ-3000×3000 | 19.1 | 210 | 700 | Y225S-8 | 18.5 | 4613 |
| BJ-3500×3500 | 24 | 230 | 850 | Y225M-8 | 22 | 5980 |
| BJ-4000×4000 | 45 | 153 | 1000 | Y225M-8 | 30 | 8910 |
| Model | Effective Volume (m3) | Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) | Motor Model | Motor Power (kW) |
Weight (kg) |
|---|---|---|---|---|---|---|
| BJW-500×600 | 0.094 | 493 | 200 | Y80L-4 | 0.55 | 120 |
| BJW-750×750 | 0.25 | 530 | 240 | Y100L-6 | 1.5 | 230 |
| BJW-750×1000 | 0.35 | 530 | 240 | Y100L-6 | 1.5 | 270 |
| BJW-1000×1000 | 0.58 | 530 | 240 | Y100L-6 | 1.5 | 420 |
| BJW-1250×1250 | 1.15 | 492 | 310 | Y100L1-4 | 2.2 | 490 |
| BJW-1500×1500 | 2.2 | 320 | 400 | Y132S-6 | 3 | 1310 |
| BJW-2000×2000 | 5.46 | 230 | 550 | Y132M2-6 | 5.5 | 1720 |
| BJW-3000×3000 | 14.8 | 210 | 700 | Y225S-8 | 18.5 | 4613 |
| Model | Diameter (mm) | Height (mm) | Volume (m3) | Specific gravity of slurry (t/m3)) | Power (Kw) | Weight (kg) |
|---|---|---|---|---|---|---|
| SJJ2.5-2.5 | 2500 | 2500 | 11 | ≤1.6 | 11 | 3087 |
| SJJ3.5-3.5 | 3500 | 3500 | 30 | ≤1.4 | 30 | 5997 |
| Model | Tank diameter (m3) | Tank depth (mm) | Effective volume (m3) | Impeller speed (mm) | Impeller diameter (mm) | Height increase (mm) | Motor model | Motor power (Kw) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| TBJ-1000 | 1000 | 1266 | 0.9 | 460 | 300 | 980 | Y132M-6 | 5.5 | 700 |
| TBJ-1250 | 1250 | 1510 | 1.396 | 460 | 400 | 1220 | Y160M-6 | 7.5 | 780 |
| TBJ-1500 | 1500 | 1800 | 2.8 | 464 | 450 | 1470 | Y160L-6 | 11 | 1022 |
| TBJ-2000 | 2000 | 2000 | 5.8 | 312 | 600 | 1570 | Y200L1-6 | 18.5 | 3122 |
| TBJ-2500 | 2500 | 2500 | 11.5 | 310 | 600 | 2070 | Y225M-8 | 22 | 3760 |
| Model | Effective Volume (m3) | Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) | Motor Model | Motor Power (kW) |
Weight (kg) |
|---|---|---|---|---|---|---|
| BJN-1500×1500 | 2.2 | 43 | 700 | XLD4-S-35 | 4 | 920 |
| BJN-2000×2000 | 4.4 | 200 | 900 | Y160M-6 | 7.5 | 1860 |
| BJN-3000×3000 | 19.1 | 160 | 1300 | Y22M-8 | 22 | 4660 |
| BJN-4000×4000 | 46 | 120 | 1000 | Y250M-8 | 30 | 8153 |
| Model | Effective Volume (m3) | Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) | Motor Model | Motor Power (kW) |
Weight (kg) |
|---|---|---|---|---|---|---|
| BJZ-750×750 | 0.26 | 530 | 240 | Y90L-4 | 1.5 | 240 |
| BJZ-1000×1000 | 0.62 | 530 | 240 | Y100L-6 | 1.5 | 680 |
| BJZ-1500×1500 | 2.38 | 320 | 400 | Y132S-6 | 3 | 1375 |
| BJZ-2000×2000 | 5.6 | 230 | 550 | Y132M2-6 | 5.5 | 2000 |
| Model | Effective Volume (m3) | Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) | Motor Model | Motor Power (kW) |
Weight (kg) |
|---|---|---|---|---|---|---|
| BJS-1000×1000 | 0.86 | 513 | 240 | Y90L-6 | 1.1 | 380 |
| BJS-1250×1250 | 1.3 | 493 | 310 | Y100L1-4 | 2.2 | 580 |
| BJS-1300×1300 | 1.8 | 320 | 400 | Y132S-6 | 3 | 750 |
| BJS-1500×1500 | 1.83 | 320 | 400 | Y132S-6 | 3 | 820 |
a.The suction capacity and circulation capacity are increased, and a jet body is provided at the bottom of the flow guide body, so the circulation capacity of the medicinal ore is further enhanced;
b.Only when the mineral surface is 100% medicinal can higher indicators be achieved.
The price of Agitation Tank will vary depending on the requirements of mining materials, processing volume, output, etc. It needs to be analyzed based on the specific situation of the mine. Different models and configurations are slightly different. You can consult online or call customer service to obtain price information.
